GE IC693CHS391 Modular CPU baseplate

IC693CHS391
IC693CHS391
IC693CHS391
IC693CHS391
IC693CHS391

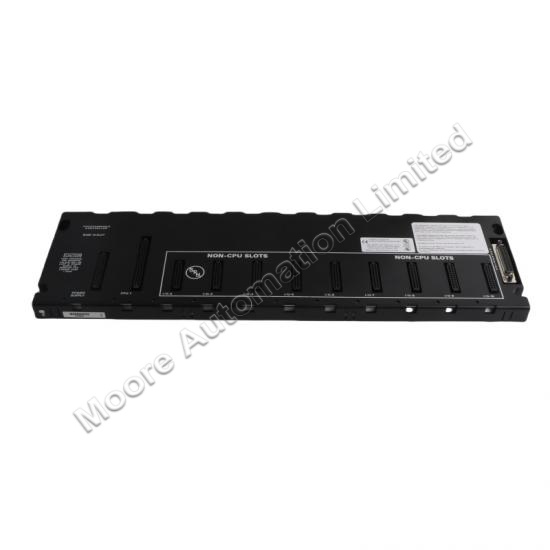

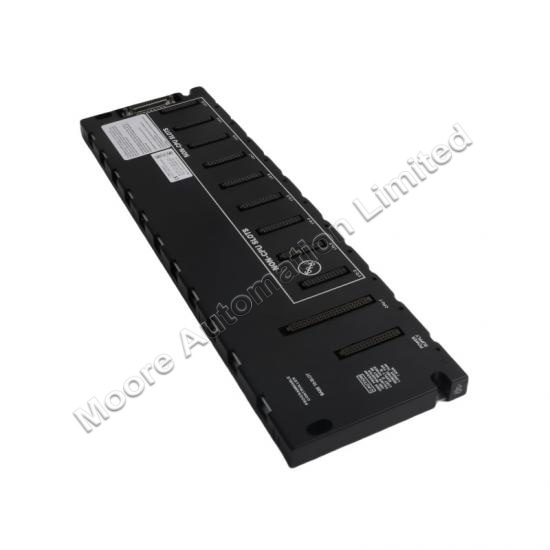

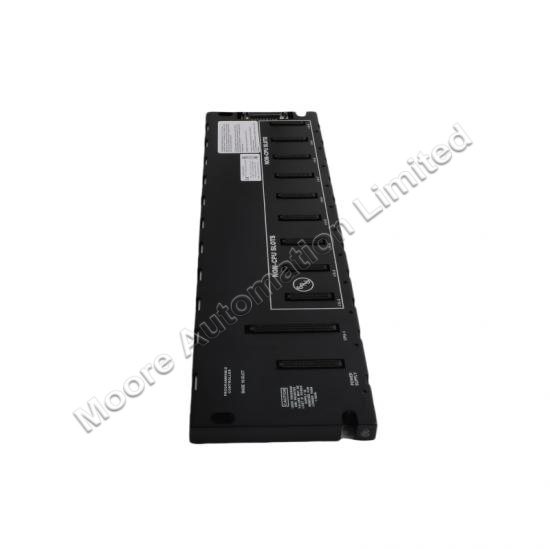

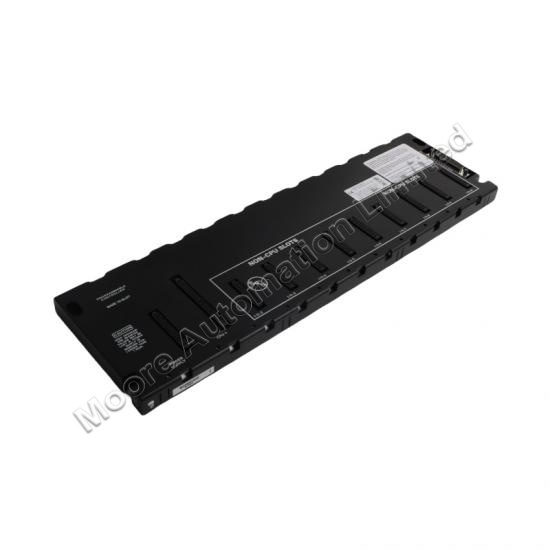

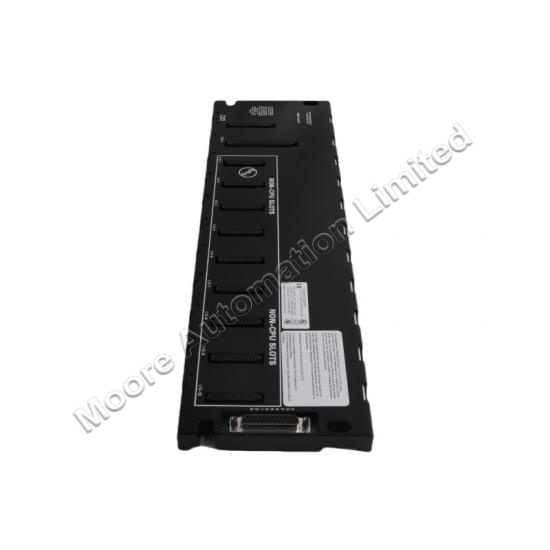

GE IC693CHS391 Modular CPU baseplate

Same Day Shipping for Stock Items

DHL / Fedex / UPS / Aramex

Professional one-on-one service

100% brand new and original

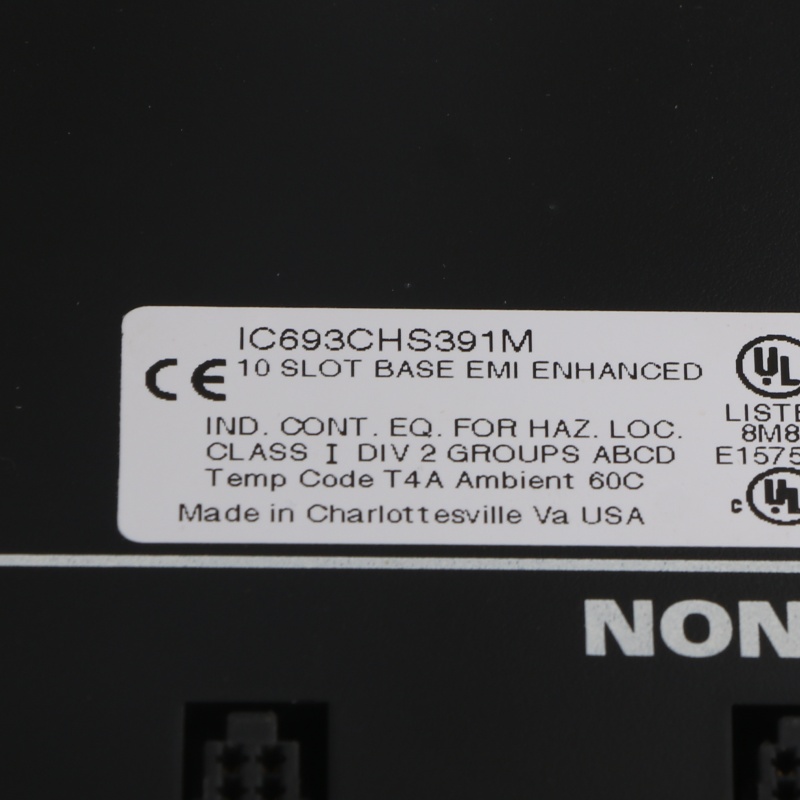

The IC693CHS391 is a Series 90-30 component that is manufactured by GE Fanuc. This is a 10-slot Modular CPU baseplate. This baseplate hosts the CPU slot, non-CPU or I/O slots, Power supply and I/O expansion bus port.


  • Picture/Video

    Get Products pictures or Video for Inspection

  • Email

    plcinfo@mooreplc.com

  • Whatsapp

    +86 18020776786
Inquiry now
whatsapp
Email
  • Specifications

  • Specification

    Product Image

    Brand Name

    General Electric



    Model Number

    IC693CHS391

    Alternate Part Number

    IC693CHS391

    Condition

    100% Original

    Quality

    Brand New

    Dimensions

    44.2x13x2cm

    Description

    Modular CPU baseplate

    Package

    Original Package

    Lead time

    In Stock

    Shipping term

    UPS DHL TNT EMS Fedex

    Payment

    T/T (Bank Transfer)

    Service

    One-Stop Service

    Weight

    0.92kg

    Warranty

    12 Months

  • Product Details
  • Product Description:

    The GE IC693CHS391 Modular CPU Baseplate is a foundational component of GE’s Series 90-30 Programmable Logic Controller (PLC) system. Designed to securely house and interconnect the CPU module and associated I/O modules, this baseplate ensures reliable electrical communication and mechanical stability in industrial automation environments. It supports modular expansion, allowing users to configure systems with the required mix of digital, analog, and specialty I/O modules. Built with industrial-grade materials, the IC693CHS391 is engineered for durability in harsh conditions, including resistance to vibration, temperature fluctuations, and electrical noise. Its plug-and-play design simplifies installation and maintenance, making it a critical part of GE’s legacy Series 90-30 PLC architecture.


    Specifications:

    Manufacturer: General Electric (GE)
    Series: Series 90-30 PLC
    Model: IC693CHS391
    Compatibility:
    Compatible with Series 90-30 CPU modules
    Supports Series 90-30 I/O modules (digital, analog, communication)
    Slots: Provides mounting and connectivity for up to 5 modules (1 CPU slot + 4 I/O slots)
    Backplane Communication: High-speed bus for data transfer between CPU and I/O modules
    Power Requirements: Derived from the connected CPU module (24V DC typical)
    Mounting: DIN rail or panel mounting (hardware included)
    Material: Flame-retardant thermoplastic housing
    Operating Temperature: -40°C to +70°C (-40°F to +158°F)
    Certifications: UL, CE, RoHS, cULus


    Frequently Asked Questions (FAQ):

    Q1: What is the purpose of the IC693CHS391 baseplate?
    A1: It serves as the physical and electrical backbone for GE’s Series 90-30 PLC system, connecting the CPU and I/O modules to enable data exchange and power distribution.

    Q2: How many modules can this baseplate support?
    A2: It supports 5 modules total: 1 CPU module and up to 4 I/O modules.

    Q3: Is this baseplate compatible with newer GE PLC systems ?
    A3: No, it is designed exclusively for the Series 90-30 platform. For newer systems, use GE’s Universal Backplane (IC693CHS390) or RX3i-compatible hardware.


  • Service and Warranty

  • NOTE:

    1. The products quoted are brand new and original with a one-year warranty

    2. Prices are ex works, for shipping calculations, Please send to my Email

    3. Cooperation with the express delivery of DHL / Fedex / UPS / Aramex, etc,Delivery time is approximately '' 5 days ''  from our warehouse to the destination country

    4. Quotation validity: 30 days, if you need to extend, please reconfirm the price after 30 days.

    5. Payment Term: 100% advance payment by bank transfer.

    6. For the products '' in stock '' in the offer, our company can support video inspection
