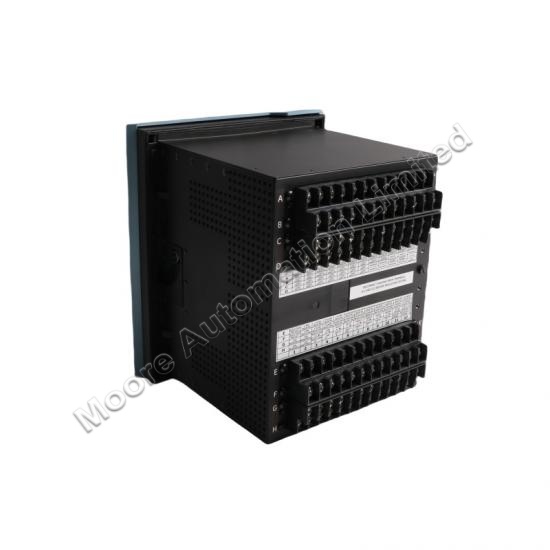

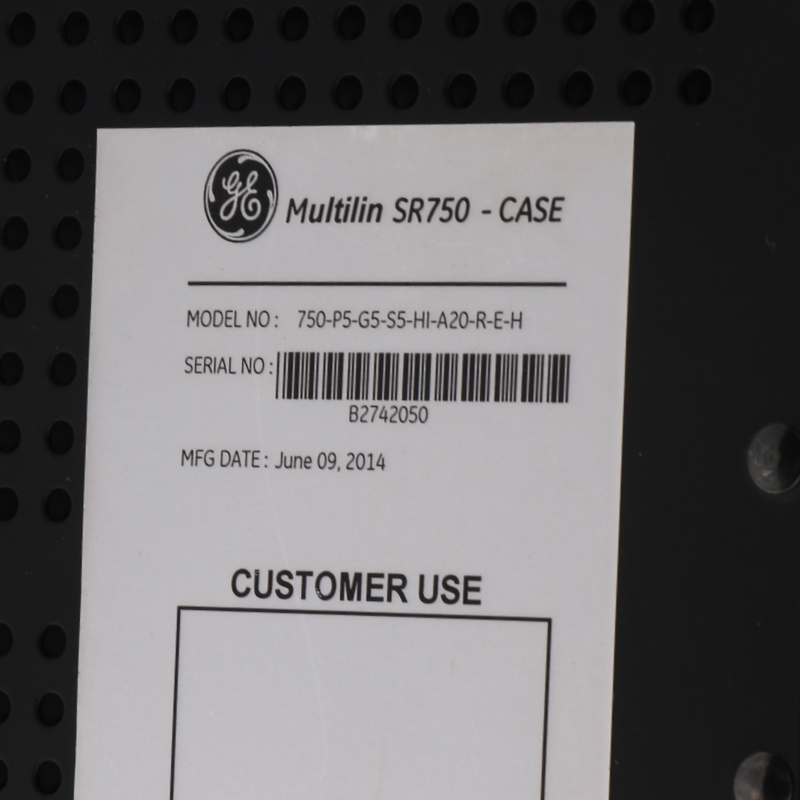

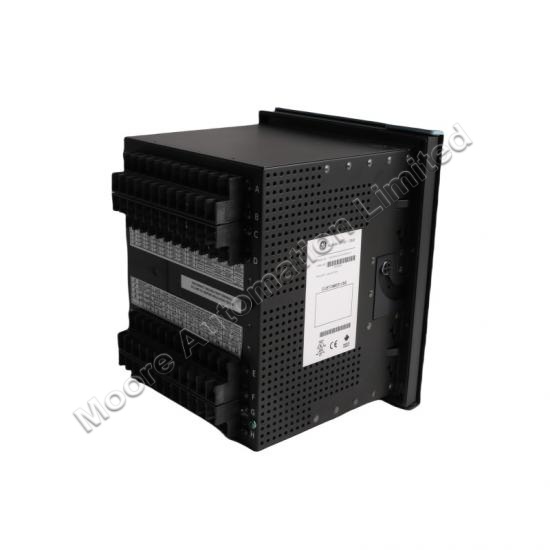

GE 750-P5-G5-S5-HI-A20-R-E-H Feeder Protection System Relay

	Same Day Shipping for Stock Items		DHL / Fedex / UPS / Aramex
	Professional one-on-one service		100% brand new and original

The 750-P5-G5-S5-HI-A20-R-E-H has 5 amp phase current inputs. It is designed with 5 amp zero-sequence current inputs and 5 amp sensitive ground current inputs. There are eight 4-20 mA analog outputs located on the unit. The 750-P5-G5-S5-HI-A20-R-E-H uses an 88-300 VDC 70-265 VAC @48-62 Hz power supply. It is rated for use within harsh chemical environments.

Picture/Video
Get Products pictures or Video for Inspection
Email
plcinfo@mooreplc.com
Whatsapp
+86 18020776786

Inquiry now

Specifications

Specification		Product Image
Brand Name	General Electric
Model Number	750-P5-G5-S5-HI-A20-R-E-H
Alternate Part Number	750-P5-G5-S5-HI-A20-R-E-H
Condition	100% Original
Quality	Brand New
Dimensions	21.5x23x25cm
Description	Feeder Protection System Relay
Package	Original Package
Lead time	In Stock
Shipping term	UPS DHL TNT EMS Fedex
Payment	T/T (Bank Transfer)
Service	One-Stop Service
Weight	7.62kg
Warranty	12 Months

Product Details
Product Description
The GE 750-P5-G5-S5-HI-A20-R-E-H is a multi-functional digital relay designed for advanced feeder protection, control, and monitoring in medium-voltage power distribution systems. Part of GE’s Multilin 750 series, this relay provides comprehensive protection against overcurrent, ground faults, arc flashes, and other electrical anomalies in industrial, utility, and commercial power networks. Its modular design allows customization to meet specific application requirements, with support for automation, grid synchronization, and adaptive protection schemes.

Specifications
Electrical Specifications

Voltage Inputs:
Phase-to-phase: Up to 600 VAC (direct) or via VT (100–300 VAC).
Ground: Sensitive ground fault detection (0.5–5 A).
Current Inputs:
Continuous: 5 A nominal (1 A or 5 A CT configurable).
Short-time withstand: 100 A for 1 sec.
Frequency: 50/60 Hz (±5% range).
Protection Functions:
Overcurrent (ANSI 50/51, 50N/51N).
Directional overcurrent (ANSI 67/67N).
Arc flash detection (ANSI 158).
Voltage-restrained/controlled overcurrent.
Communication & I/O

Protocols: IEC 61850, DNP3, Modbus RTU/TCP, IEC 60870-5-103.
Digital I/O: 12 programmable inputs, 8 relay outputs.
Ethernet Ports: Dual ports for redundancy.
HMI Interface: 4-line LCD with push-button navigation.
Physical Specifications

Enclosure: 19-inch rack-mountable or panel-mounted.
Dimensions: 21.5x23x25cm
Weight: 7.62kg
Terminals: Spring-clamp or screw-type for CT/VT and I/O wiring

Frequently Asked Questions (FAQ)
Q1: What distinguishes the 750-P5-G5-S5-HI-A20-R-E-H from other 750-series relays?
A: The suffix codes denote specific configurations (e.g., HI: High-inrush tripping, A20: Arc flash protection with 20-event log, R: Ruggedized enclosure). It is optimized for harsh environments and dynamic load conditions.

Q2: How is directional overcurrent (67/67N) configured in this relay?
A: Use GE’s EnerVista 750 Setup software to define polarization methods (voltage or dual-breaker logic) and set torque angles for accurate fault directionality.

Q3: Can the relay support arc flash detection without external sensors?
A: Yes. It uses light sensors (optional) or calculates arc energy based on current/voltage signatures. For ANSI 158 compliance, ensure firmware is updated to the latest version.
Service and Warranty

NOTE:

1. The products quoted are brand new and original with a one-year warranty

2. Prices are ex works, for shipping calculations, Please send to my Email

3. Cooperation with the express delivery of DHL / Fedex / UPS / Aramex, etc,Delivery time is approximately '' 5 days '' from our warehouse to the destination country

4. Quotation validity: 30 days, if you need to extend, please reconfirm the price after 30 days.

5. Payment Term: 100% advance payment by bank transfer.

6. For the products '' in stock '' in the offer, our company can support video inspection
