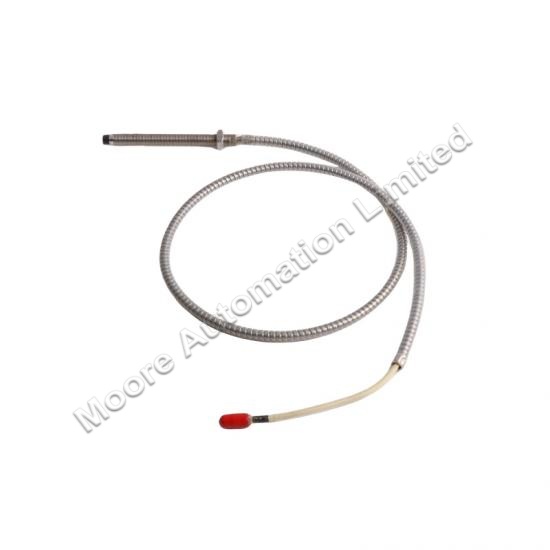

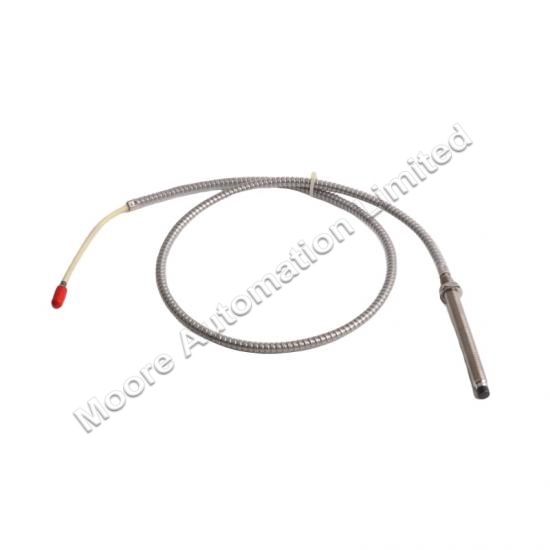

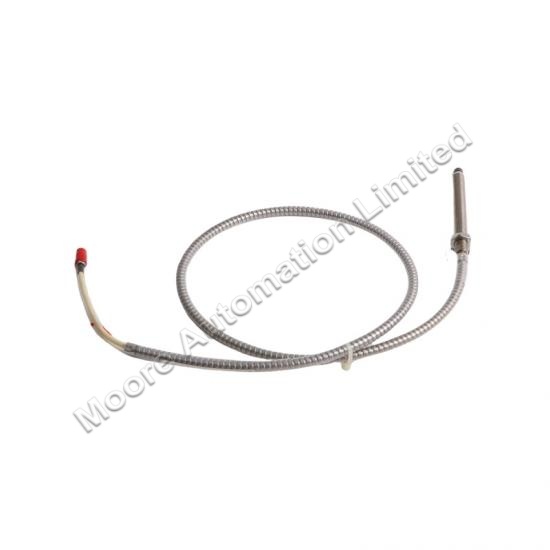

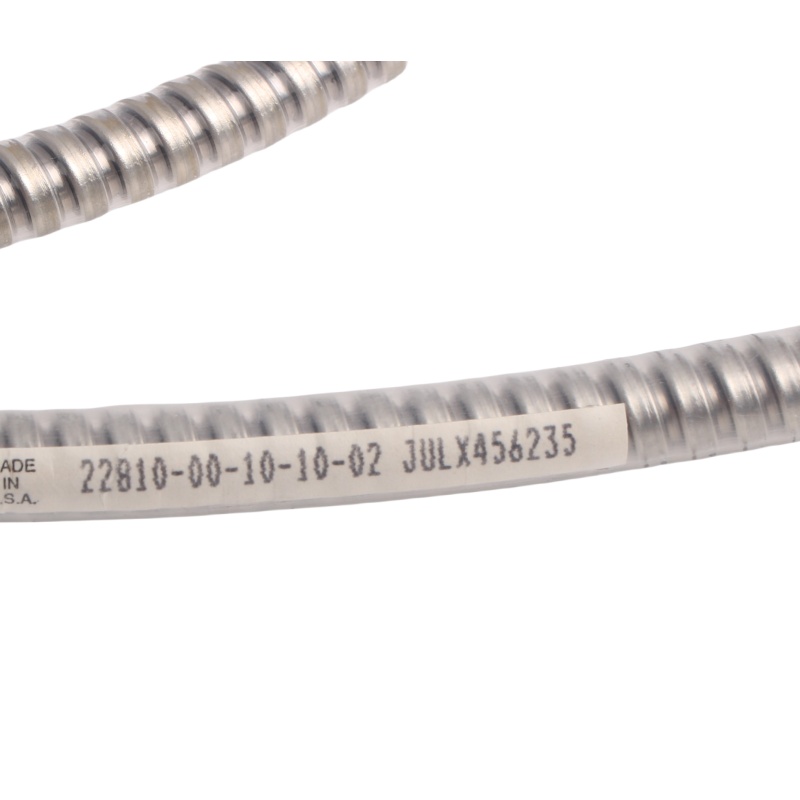

Bently Nevada 22810-00-10-10-02 3300 XL 5/8mm Proximitor

22810-00-10-10-02
22810-00-10-10-02
22810-00-10-10-02
22810-00-10-10-02
22810-00-10-10-02

Bently Nevada 22810-00-10-10-02 3300 XL 5/8mm Proximitor

Same Day Shipping for Stock Items

DHL / Fedex / UPS / Aramex

Professional one-on-one service

100% brand new and original


The Bently Nevada 22810-00-10-10-02 3300 XL 5/8mm Proximitor is a high-performance eddy-current proximity probe system designed for non-contact vibration and displacement monitoring in industrial machinery.


  • Picture/Video

    Get Products pictures or Video for Inspection

  • Email

    plcinfo@mooreplc.com

  • Whatsapp

    +86 18020776786
Inquiry now
whatsapp
Email
  • Specifications

  • Specification

    Product Image

    Brand Name

    Bently Nevada



    Model Number

    22810-00-10-10-02

    Alternate Part Number

    22810-00-10-10-02

    Condition

    100% Original

    Quality

    Brand New

    Dimensions

    22x20x1.5cm

    Description

    3300 XL 5/8mm Proximitor

    Package

    Original Package

    Lead time

    In Stock

    Shipping term

    UPS DHL TNT EMS Fedex

    Payment

    T/T (Bank Transfer)

    Service

    One-Stop Service

    Weight

    0.14kg

    Warranty

    12 Months

  • Product Details
  • Product Description
    The Bently Nevada 22810-00-10-10-02 3300 XL 5/8mm Proximitor is a high-performance eddy-current proximity probe system designed for non-contact vibration and displacement monitoring in industrial machinery. Part of the renowned Bently Nevada 3300 XL series, this Proximitor® transducer is widely used in critical rotating equipment such as turbines, compressors, pumps, and motors to ensure operational reliability and early fault detection.

    The system consists of a 5/8mm diameter probe, an extension cable, and a proximitor (transducer) that converts the sensor’s electromagnetic signal into a precise voltage output proportional to the target’s position or vibration. Its robust design ensures accurate measurements even in harsh industrial environments, with resistance to temperature fluctuations, oil, humidity, and electromagnetic interference.


    Specifications
    Electrical Parameters:
    Power Supply: -24 V DC (±10%)
    Output Signal: -4 to -20 V DC (linear range proportional to gap voltage)
    Frequency Response: 0 to 10 kHz (±3 dB)
    Sensitivity: 200 mV/mil (7.87 V/mm)
    Linearity: ±1% of full scale over the linear range
    Input Impedance: 10 kΩ (nominal)
    Mechanical/Physical Parameters:
    Probe Diameter: 5/8 mm (0.315 in)
    Measurement Range: 0 to 2.5 mm (0 to 100 mils) typical
    Operating Temperature:
    Probe: -40°C to +150°C (-40°F to +302°F)
    Proximitor: -40°C to +85°C (-40°F to +185°F)


    Frequently Asked Questions (FAQ)
    Q1: How do I install the 3300 XL Proximitor system correctly?
    A: Proper installation is critical. Ensure the probe is mounted perpendicular to the target surface, with a gap voltage set within the linear range (typically -10 V DC). Follow Bently Nevada’s calibration guidelines to avoid measurement errors.

    Q2: What causes unstable output signals?
    A: Common causes include improper grounding, electromagnetic interference, cable damage, or contamination on the probe tip. Check connections and clean the probe surface.

    Q3: Can this sensor work in high-temperature environments?
    A: Yes. The probe withstands up to 150°C (302°F). For higher temperatures, consider a high-temperature probe variant or a cooling assembly.


  • Service and Warranty

  • NOTE:

    1. The products quoted are brand new and original with a one-year warranty

    2. Prices are ex works, for shipping calculations, Please send to my Email

    3. Cooperation with the express delivery of DHL / Fedex / UPS / Aramex, etc,Delivery time is approximately '' 5 days ''  from our warehouse to the destination country

    4. Quotation validity: 30 days, if you need to extend, please reconfirm the price after 30 days.

    5. Payment Term: 100% advance payment by bank transfer.

    6. For the products '' in stock '' in the offer, our company can support video inspection
