Bently Nevada 18745-03 Proximitor Sensor

18745-03
18745-03
18745-03
18745-03
18745-03

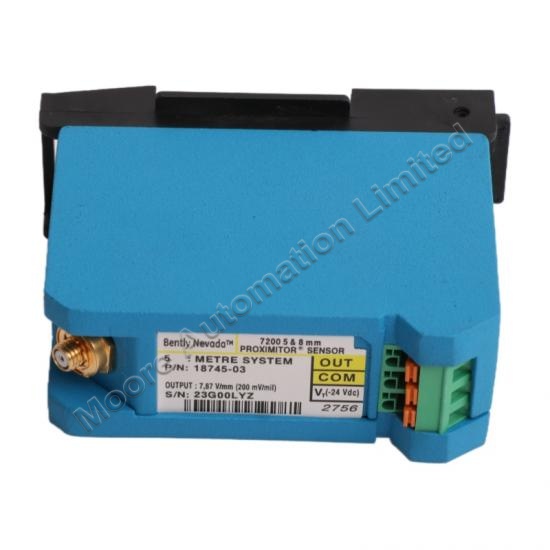

Bently Nevada 18745-03 Proximitor Sensor

Same Day Shipping for Stock Items

DHL / Fedex / UPS / Aramex


Professional one-on-one service

100% brand new and original

The Bently Nevada 18745-03 Proximitor Sensor is an industrial-grade device designed to provide accurate non-contact measurement of shaft vibration and position in rotating machinery.With high reliability, wide operating temperature range, and robust construction, it ensures dependable operation in demanding industrial environments.

  • Picture/Video

    Get Products pictures or Video for Inspection

  • Email

    plcinfo@mooreplc.com

  • Whatsapp

    +86 18020776786
Inquiry now
whatsapp
Email
  • Specifications

  • Specification

    Product Image

    Brand Name

    		Bently Nevada


    Model Numberv

    		18745-03

    Alternate Part Number

    		18745-03

    Condition

    100% Original

    Quality

    Brand New

    Dimensions

    		8.6cmx3.4cmx6.9cm

    Description

    		Proximitor Sensor

    Package

    Original Package

    Lead time

    In Stock

    Shipping term

    UPS DHL TNT EMS Fedex

    Payment

    T/T (Bank Transfer)

    Service

    One-Stop Service

    Weight

    		0.25 kg

    Warranty

    12 Months

  • Product Details

  • Product Description:
    The Bently Nevada 18745-03 Proximitor Sensor is an industrial-grade device designed to provide accurate non-contact measurement of shaft vibration and position in rotating machinery. It works with proximity probes and extension cables to deliver precise output signals for machinery monitoring and protection. With high reliability, wide operating temperature range, and robust construction, it ensures dependable operation in demanding industrial environments. The sensor offers excellent linearity, stable performance, and compatibility with a range of monitoring systems, making it suitable for critical machinery applications.

    Specifications:
    Model: 18745-03
    Sensor type: Proximitor sensor
    Scale factor: 200 mV/mil (7.87 mV/µm)
    Linearity: ±0.25%
    Power supply: -24 Vdc regulated
    Frequency response: DC to 10 kHz
    Maximum cable length: Up to 9 m
    Extension cable capacitance: 69.9 pF/m
    Probe case material: Stainless steel
    Proximitor housing material: Aluminum alloy
    Operating temperature: -35°C to +100°C (-31°F to +212°F)
    Storage temperature: -40°C to +125°C (-40°F to +257°F)
    Relative humidity: 95% non-condensing
    Insulation resistance: >100 MΩ at 500 Vdc
    Typical system accuracy: ±6.5% overall

    Frequently Asked Questions (FAQ):
    1.What is the function of the Bently Nevada 18745-03 Proximitor Sensor?
    It measures shaft vibration and position by converting probe signals into usable output.

    2.What is the scale factor of this sensor?
    The scale factor is 200 mV/mil (7.87 mV/µm) nominal.

    3.What is the operating temperature range?
    The operating range is -35°C to +100°C.
  • Service and Warranty

  • NOTE:

    1. The products quoted are brand new and original with a one-year warranty

    2. Prices are ex works, for shipping calculations, Please send to my Email

    3. Cooperation with the express delivery of DHL / Fedex / UPS / Aramex, etc,Delivery time is approximately '' 5 days ''  from our warehouse to the destination country

    4. Quotation validity: 30 days, if you need to extend, please reconfirm the price after 30 days.

    5. Payment Term: 100% advance payment by bank transfer.

    6. For the products '' in stock '' in the offer, our company can support video inspectio.
