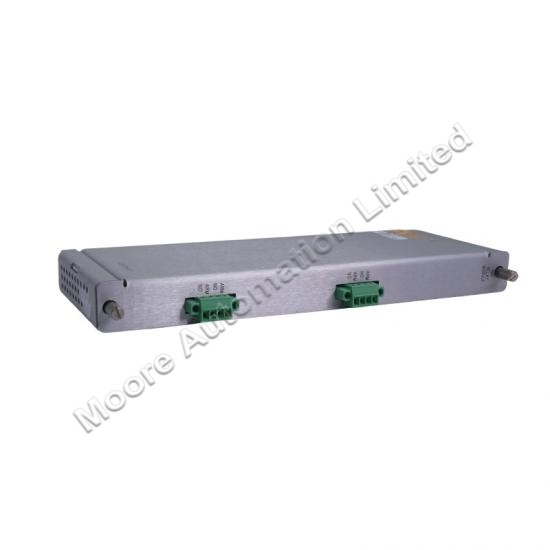

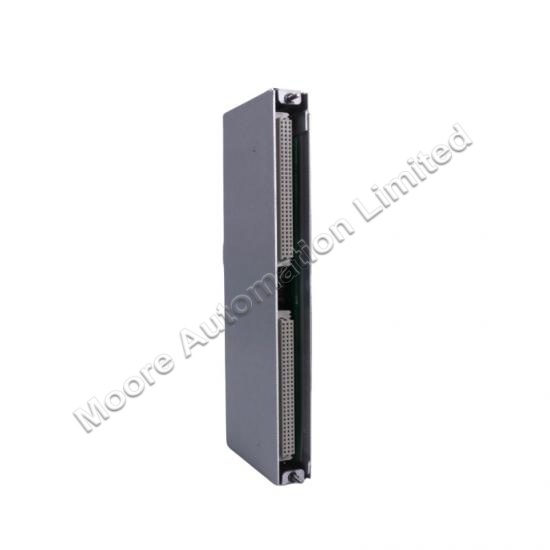

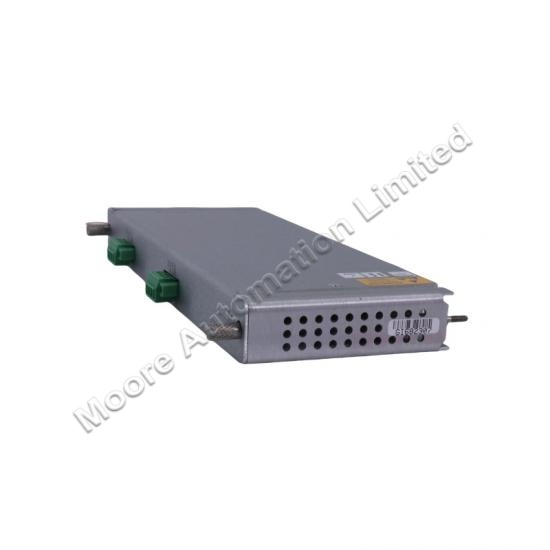

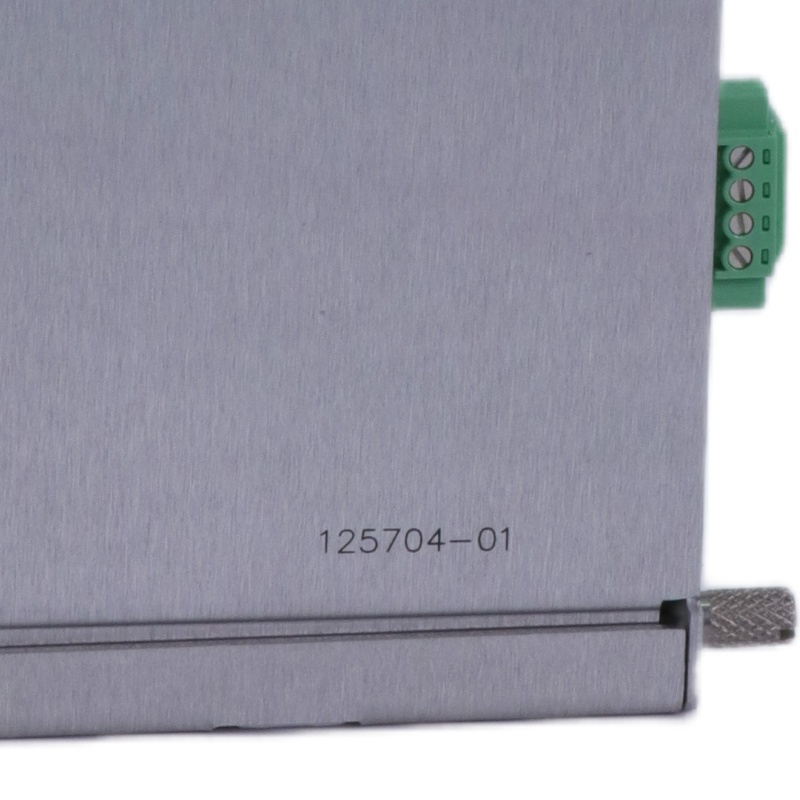

BENTLY NEVADA 125704-01 TMR RELAY MODULE

125704-01
125704-01
125704-01
125704-01
125704-01

BENTLY NEVADA 125704-01 TMR RELAY MODULE

Same Day Shipping for Stock Items

DHL / Fedex / UPS / Aramex

Professional one-on-one service

100% brand new and original


The BENTLY NEVADA 125704-01 TMR Relay Module is a high-reliability industrial-grade relay module designed for critical machinery protection and monitoring systems.


  • Picture/Video

    Get Products pictures or Video for Inspection

  • Email

    plcinfo@mooreplc.com

  • Whatsapp

    +86 18020776786
Inquiry now
whatsapp
Email
  • Specifications

  • Specification

    Product Image

    Brand Name

    Bently Nevada



    Model Number

    125704-01

    Alternate Part Number

    125704-01

    Condition

    100% Original

    Quality

    Brand New

    Dimensions

    2.5x11.2x24.2cm

    Description

    TMR RELAY MODULE

    Package

    Original Package

    Lead time

    In Stock

    Shipping term

    UPS DHL TNT EMS Fedex

    Payment

    T/T (Bank Transfer)

    Service

    One-Stop Service

    Weight

    0.52kg

    Warranty

    12 Months

  • Product Details
  • Product Description

    The BENTLY NEVADA 125704-01 TMR Relay Module is a high-reliability industrial-grade relay module designed for critical machinery protection and monitoring systems. It leverages Triple Modular Redundancy (TMR) technology to ensure fault-tolerant operation in harsh environments, making it ideal for applications in power generation, oil and gas, and heavy industries. This module integrates seamlessly with Bently Nevada’s condition monitoring systems to provide robust alarm and shutdown functionalities. Its compact design and rugged construction ensure durability and long-term performance in high-vibration, high-temperature, and corrosive settings.


    Specifications
    Input/Output (I/O):
    Relay Contacts: 4 SPDT (Single Pole Double Throw) relays.
    Contact Rating: 5 A @ 250 VAC/30 VDC (resistive load).
    Isolation Voltage: 1500 VAC between coils and contacts.

    Electrical Characteristics:
    Operating Voltage: 24 VDC (±10%).
    Power Consumption: ≤2 W (typical).
    Response Time: ≤10 ms (relay actuation).

    Environmental:
    Operating Temperature Range: -40°C to +85°C.
    Storage Temperature: -50°C to +100°C.
    Humidity: 0–95% RH (non-condensing).
    Protection Rating: IP20 (front panel).
    Mechanical:
    Dimensions: 2.5x11.2x24.2cm


    Frequently Asked Questions (FAQ)

    Q1: What is TMR technology, and why is it used in this module?
    A1: TMR (Triple Modular Redundancy) employs three independent processing channels to vote on outputs, ensuring fault tolerance. This design minimizes the risk of false alarms or failures in critical industrial applications.

    Q2: Can this relay module operate in explosive environments?
    A2: The base model (125704-01) is not ATEX-certified. For hazardous areas, request the ATEX/IECEx variant (specific part number required).

    Q3: How do I integrate this module with existing Bently Nevada systems?
    A3: The module is compatible with the 3500 Series racks and communicates via dedicated backplane connectors. Configuration is done using the System 1™ software.


  • Service and Warranty

  • NOTE:

    1. The products quoted are brand new and original with a one-year warranty

    2. Prices are ex works, for shipping calculations, Please send to my Email

    3. Cooperation with the express delivery of DHL / Fedex / UPS / Aramex, etc,Delivery time is approximately '' 5 days ''  from our warehouse to the destination country

    4. Quotation validity: 30 days, if you need to extend, please reconfirm the price after 30 days.

    5. Payment Term: 100% advance payment by bank transfer.

    6. For the products '' in stock '' in the offer, our company can support video inspection
